Description
Features:

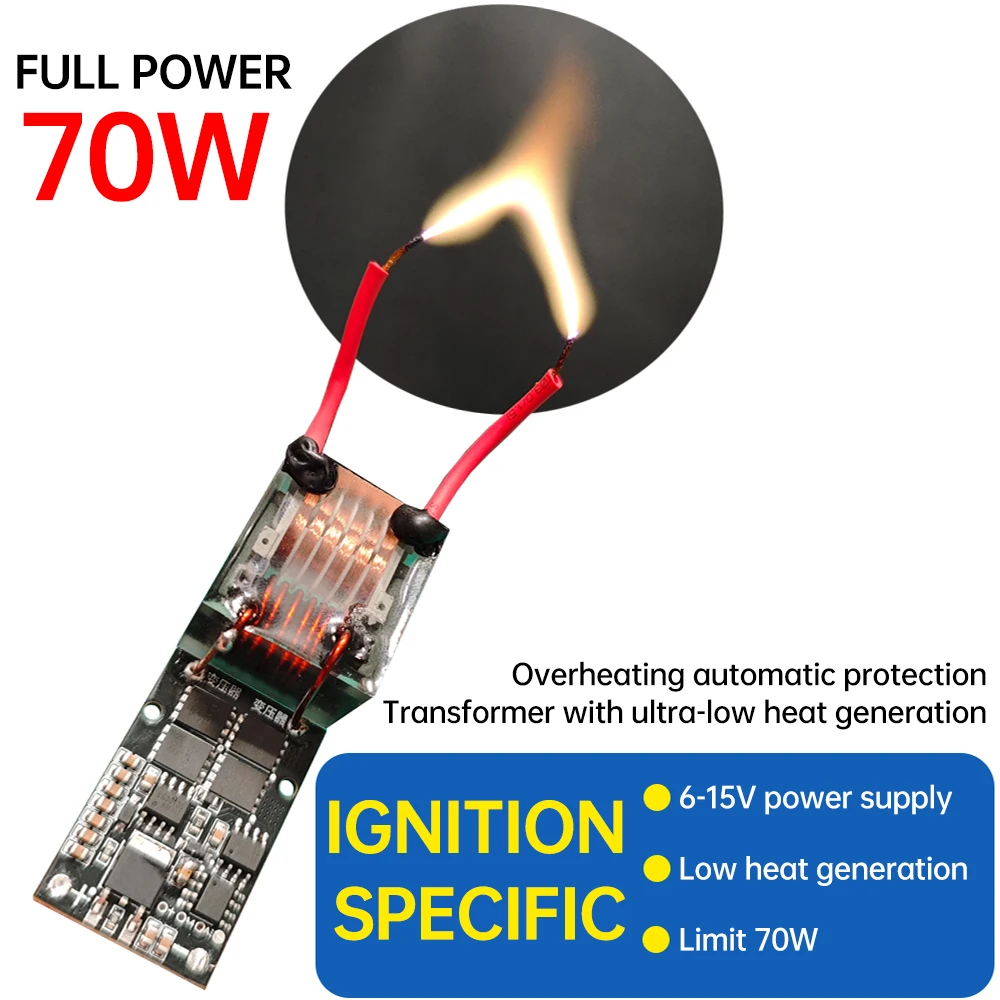

1. High voltage output: provide AC 10kV-25kV output, ensure stable and reliable ignition effect
2. Low heat design: 12V power supply natural heat dissipation, support for long time continuous work without burnout

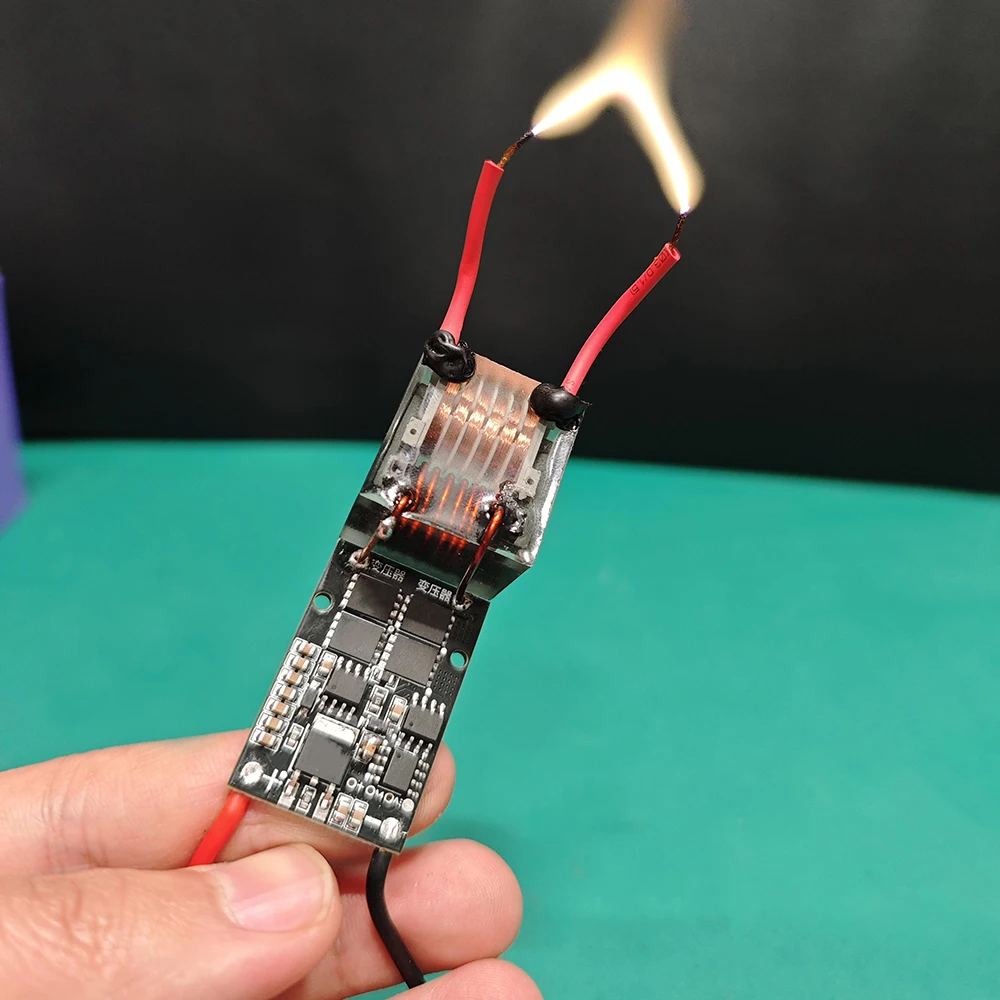

3. Dynamic sweeping arc: automatic arc starting without manual arc, convenient and efficient
4. Overheating protection mechanism: MOS overheating automatic protection, effectively prevent high temperature damage to the equipment

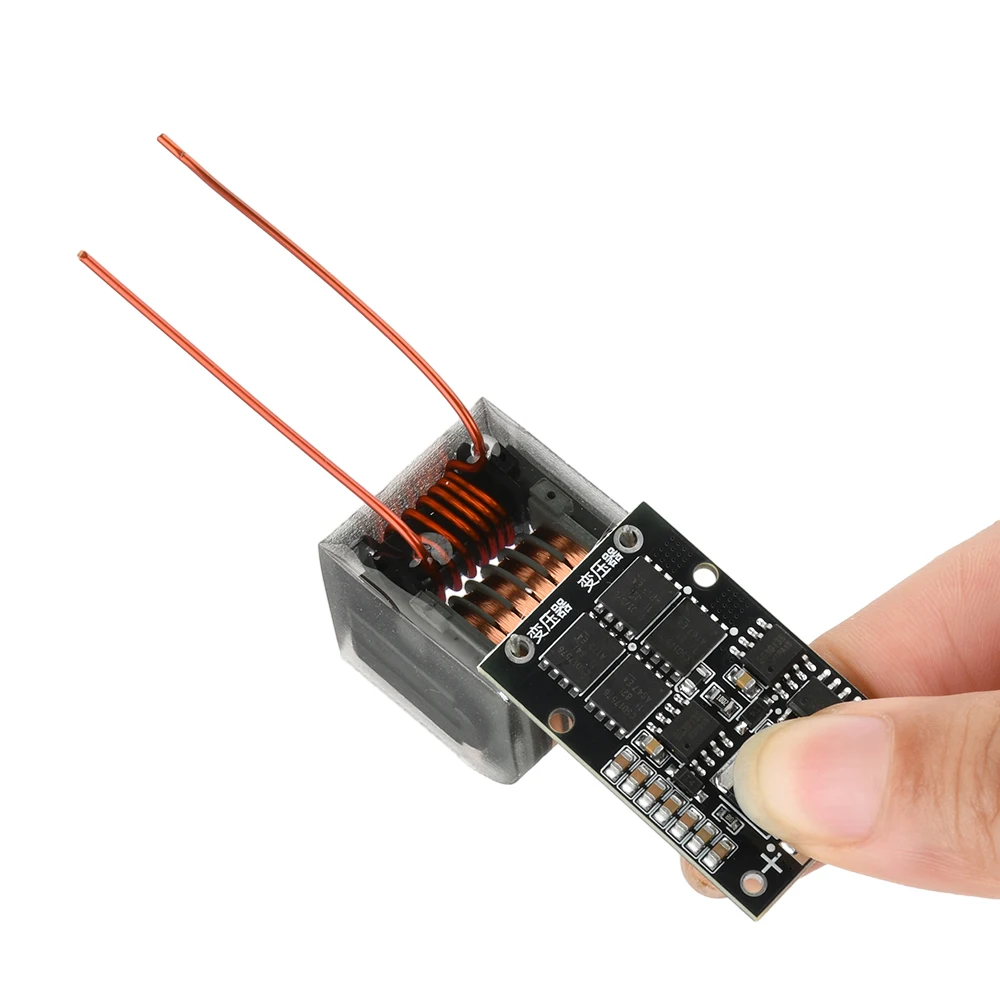

5. Compact size design: small circuit board and transformer, easy to integrate into a variety of equipment
Parameter:
Product name: Arc igniter high voltage module
Supply voltage: DC 6-15V (recommended 3S battery power or 12V switching power supply)
Input Current: Maximum 5A
Maximum power: 70W (15V power supply, 12V power supply about 45W)
Output voltage: AC 10kV-25kV

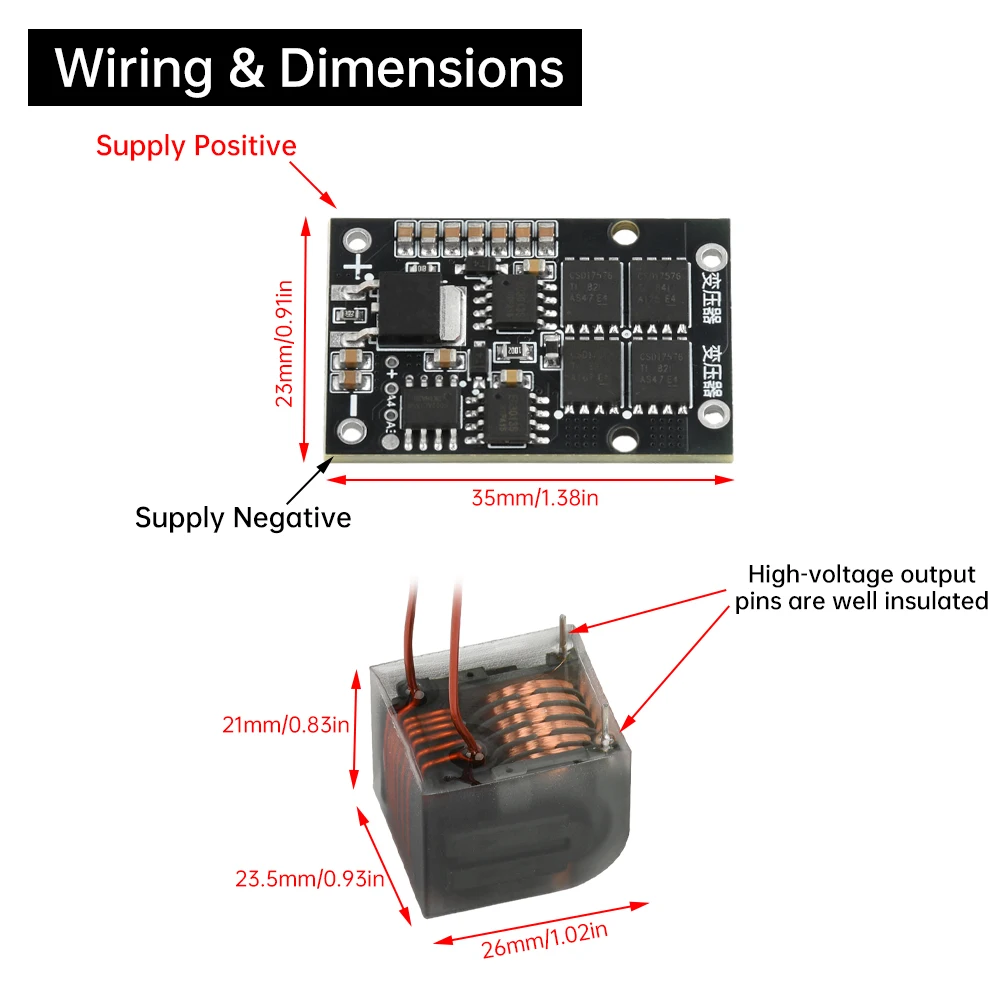

Circuit board size: 35x23mm
Transformer size: 26x24x21mm+ (3mm high output insulation)
Protection mechanism: MOS overheating automatic protection (effective prevention of not paying attention to the high temperature burned driver board)
Description:
This ignition module using dynamic frequency sweeping automatic arc, without manual arc, supporting transformer 12V power supply natural heat dissipation can work for a long time, the driver board mos temperature rise rate and ignition electrode distance related to the closer the temperature rises faster, the high-voltage output line should not be too long, such as the need to extend the power supply line can be extended, or transformer secondary
Attention:

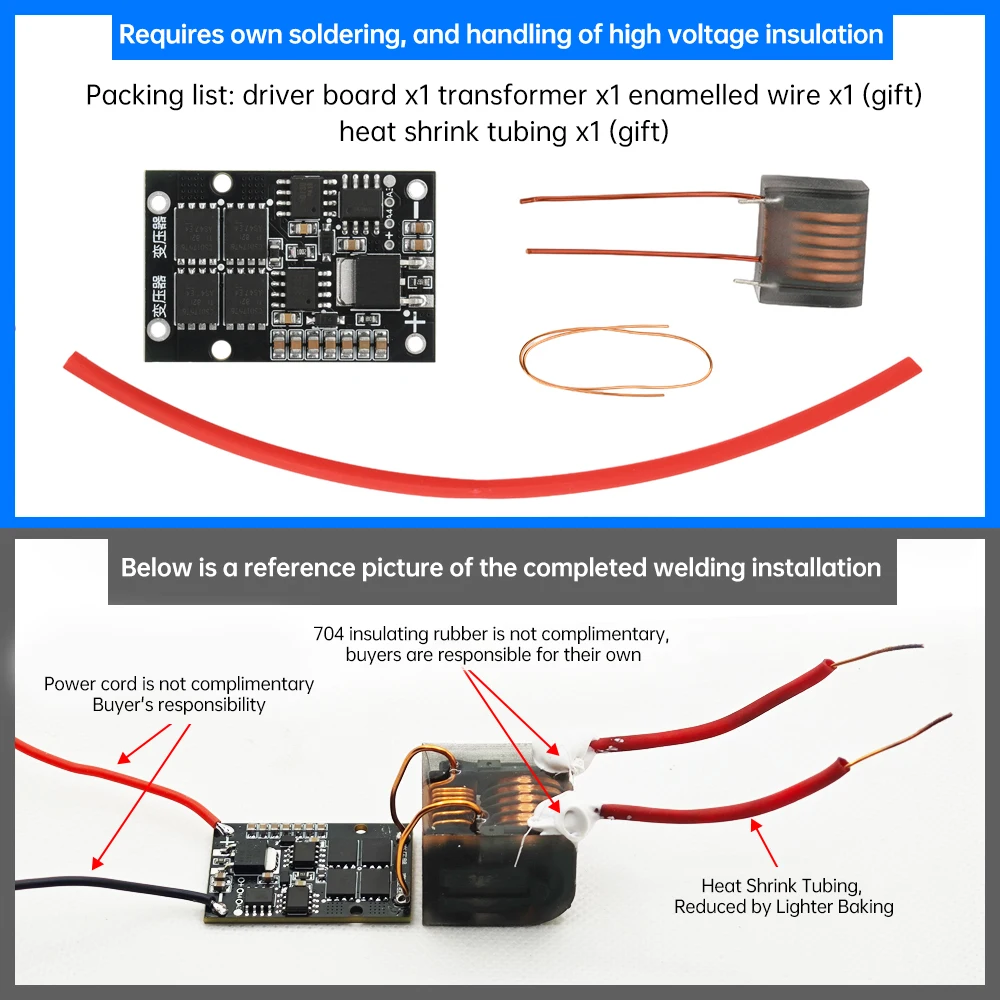

Due to the higher power, the secondary output of the transformer (that is, the high-voltage output pin) must be well insulated to prevent the arc in the transformer high-voltage output pin ignition, resulting in burned and burned off the pin, which is irreversible damage. No insulation can only be powered on momentary test

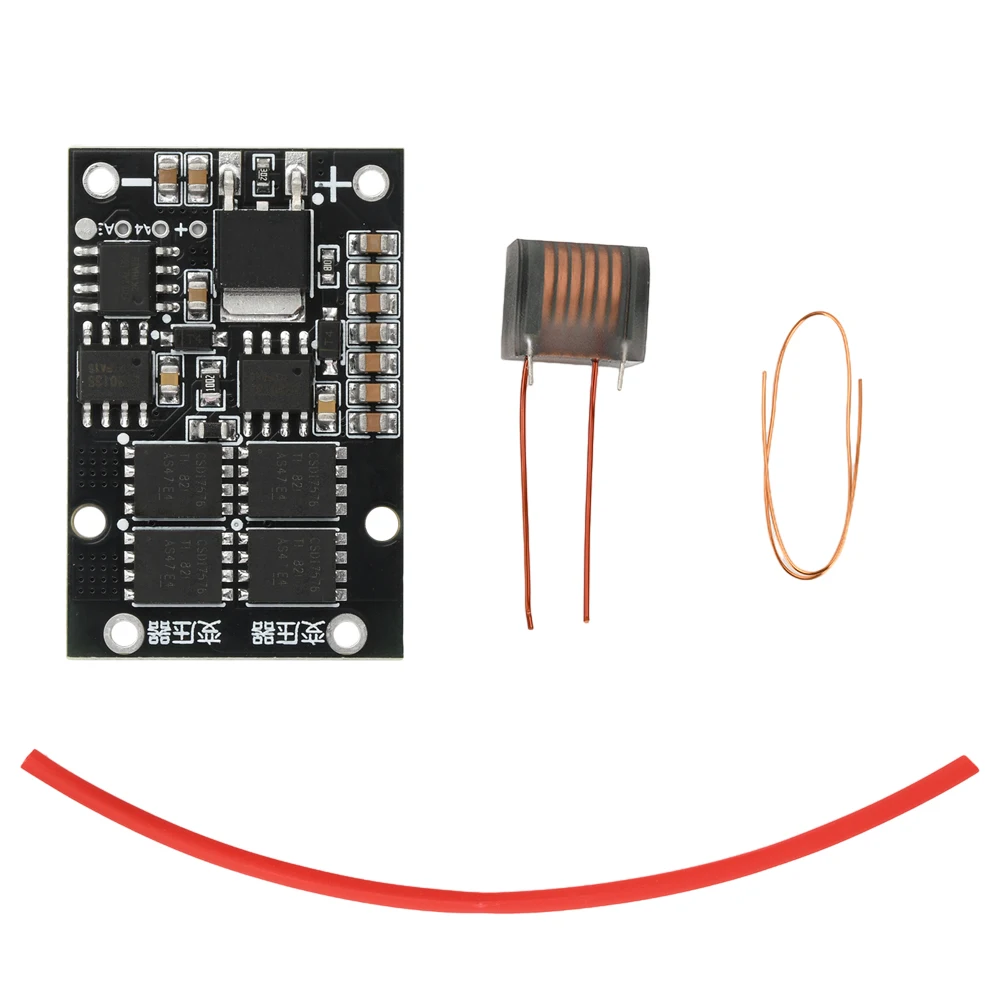

Package include:
Driver board x1
Transformer x1
Accessories x1
